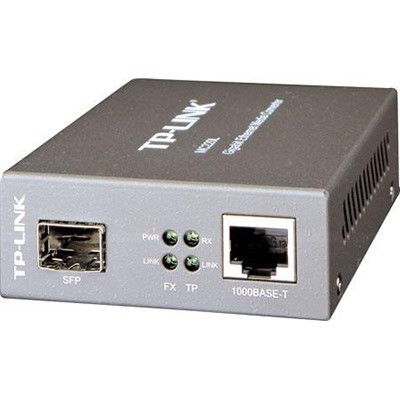

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa

• Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode
• Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINKs 19 inch system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs
• The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometres and 10 kilometres when utilizing single-mode fiber
• Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
• Supports auto MDI/MDIX for TX port
• Provides switch configuration of Force /Auto transfer mode for FX port
• FX port support hot-swappable
• Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
• Easy-to-view LED indicators provide status to monitor network activity easily
• External power supply
• MEDIA CONVERTER AND MODULE
• Standards and Protocols: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
• Basic Function: Full Duplex Flow Control (IEEE 802.3x), Extends fiber distance up to 0.5km using 50/125um fiber
• Ports: 1 x Gigabit SFP port, 1 x 1000M RJ45 port (Auto MDI/MDIX)
• Wave Length: Depends on the used SFP module
• Network Media 1000BASE-FX: Multi-mode/Single-mode SFP module
• Network Media 1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100m), EIA/TIA-568 100 ohms STP (maximum 100m)
